BSTUS 71 Detector River Level Sensor

Application: Water level

Measuring range: 0-70m

Process temperature: -40℃-100℃

Signal output: RS485/Modbus agreement/(4~20)Ma

Connection process: Stainless steel

Power supply mode: Simple installation

Power consumption: Low power consumption

Inquiry

Email US

Contact by phone

Product parameters

Measurement range: 20m;
DTU distribution box
Power supply: solar energy
Support: pole (304 stainless steel 3m*2m)
Explosion-proof type:Exia II C T6 Ga

(In case of any other requirements, the actual charge shall prevail)

The BSTUS-71 Wireless intelligent integrated radar level sensor produced by our company could be widely used in the level monitoring of large tanks, lakes, rivers, reservoirs and tidal waters. The independent solar power system is convenient and efficient. It can ensure more than 3 days of continuous power supply without sunshine conditions. The special customized RTU,DTU devices which can transmit signals stably, coupled with the developed IOT system and high performance Ali-Cloud platform servers, they can provide stable and reliable measurements for users.And users can view the data at anytime/anywhere through mobile and Web ends.

Application Case

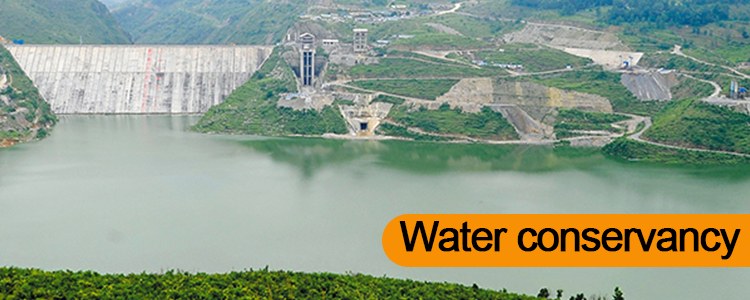

It is widely used in the level monitoring of reservoirs, river channels, lakes, reservoir ponds, liquid storage tanks, irrigation areas of farmlands and other remote areas unattended where is too far or inconvenient for wiring and power supply.

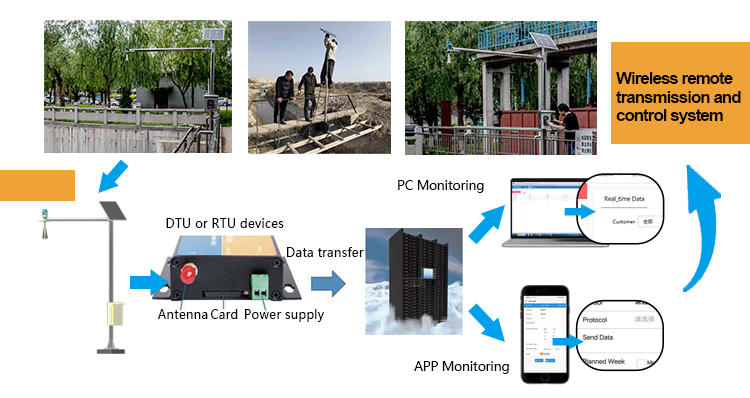

The BSTUS-71 integrated radar level sensor produced by our company, using solar power supply system , RTU or DTU terminal equipment collecting data, coupled with low power consumption radar level sensor , transmit the data collected to an individual cloud platform server through GPRS or 4G signals , users can view the real-time data or historical data by mobile or web ends , also realized the remote setting and control. Meanwhile, we can do secondary development of the software system under the personalized needs of customers . High performance server, advanced IOT system, powerful database software and accurate radar level sensor , could provide stable and reliable service for customers.
