When it comes to measuring fluid flow accurately, understanding pressure measurements is key. Orifice plates are often used to measure the flow of liquids and gases in various industries, and achieving precise pressure readings is crucial for ensuring accurate flow calculations. In this article, we’ll delve into the corner-tap pressure measurement method for orifice plates, a widely used approach for obtaining precise pressure readings in flow systems.
What is an Orifice Plate?

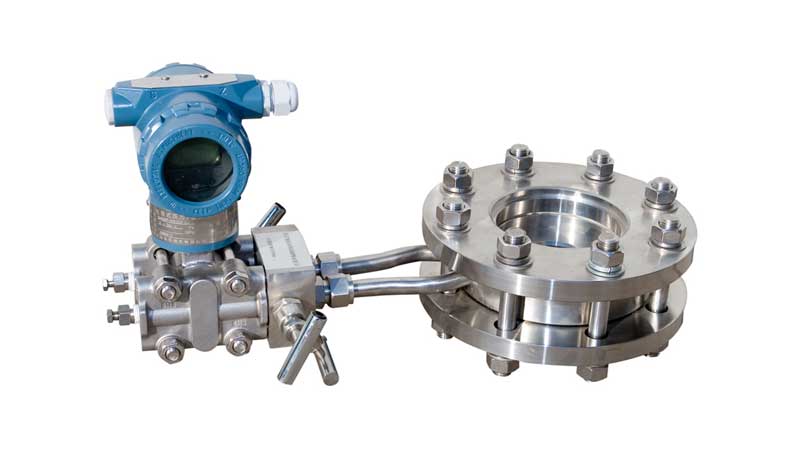

An orifice plate is a flat, circular disc with a hole in the middle that is inserted into a pipeline. Its primary function is to restrict the flow of fluid, creating a pressure differential that can be measured and used to calculate the flow rate of the fluid. Orifice plates are an essential component in flow measurement systems, especially in industries where precise fluid flow control is necessary, such as oil and gas, chemical processing, and water treatment.
Understanding Pressure Taps
Pressure taps are small holes or connections placed in the pipeline at strategic locations to measure pressure. These taps help in capturing the pressure differential across the orifice plate. Pressure taps can be installed in various positions, depending on the method being used for flow measurement. These positions include:
-
Upstream tap: Before the orifice plate.
-
Downstream tap: After the orifice plate.
-
Corner tap: Located at the corner of the orifice plate, offering specific benefits in terms of measurement accuracy.
The Corner-Tap Pressure Measurement Method
The corner-tap pressure measurement method is one of the most accurate ways to measure pressure in a system involving orifice plates. In this method, pressure taps are placed at the corners of the orifice plate, rather than on the flat surface or along the sides. This location helps in capturing the most stable and representative pressure readings of the flow.
How It Differs from Other Pressure Tap Methods
Other pressure tap methods, such as side-tap and internal-tap, measure pressure from areas where flow disturbances can occur due to the proximity to the orifice plate’s edges. These disturbances can lead to less accurate readings. The corner-tap method, however, minimizes these disturbances, leading to a more accurate representation of the pressure differential.
Benefits of Corner-Tap Pressure Measurement
There are several reasons why the corner-tap method is preferred in specific applications:
-
Accuracy: Corner taps tend to provide more accurate readings due to the reduced impact of flow disturbances.
-
Reliability: The corner-tap location is less likely to be affected by turbulence, providing stable pressure readings over time.
-
Cost-Effective: Compared to other advanced measurement methods, the corner-tap system is relatively simple and cost-effective, making it suitable for various industries.
The Science Behind Corner-Tap Pressure Measurement
At its core, the corner-tap method leverages the principles of fluid dynamics. When fluid flows through the orifice plate, it accelerates as it passes through the hole, creating a pressure drop. By measuring the pressure at the corners of the orifice, the corner-tap method captures this pressure drop more accurately because it is located where the flow is more uniform and less prone to turbulence.
When to Use Corner-Tap Pressure Measurement?
The corner-tap method is most effective under certain conditions:
-
Steady Flow: It works best when the flow is relatively steady and uniform, with minimal turbulence.
-
High Accuracy Required: When precise pressure measurements are critical for accurate flow calculations, the corner-tap method shines.
-
Flow Systems with Small Pipelines: In systems with smaller diameter pipes, corner-taps can significantly improve measurement accuracy.
Comparison with Other Methods
Let’s take a closer look at how the corner-tap method compares with other pressure tap methods:
-
Side-Tap vs Corner-Tap: While side-tap methods are simpler, they tend to be affected by disturbances and turbulence near the orifice plate. The corner-tap method, positioned further away, minimizes these effects and delivers more reliable readings.
-
Internal-Tap vs Corner-Tap: Internal taps may capture pressure in a more localized manner, but they can be influenced by vortex formations and eddies that disrupt the flow. Corner taps help in avoiding these issues, ensuring a more accurate measurement.
How to install orifice plate in pipeline?
Installing an orifice plate with corner-tap pressure measurement requires careful consideration:
Step-by-Step Guide
-
Determine the Correct Tap Locations: Mark the corners of the orifice plate where the taps will be installed.
-
Install Pressure Taps: Drill the necessary holes at the marked corners, ensuring the holes are clean and smooth.
-
Connect the Pressure Lines: Attach the pressure lines to the taps, making sure there are no leaks.
-
Calibration: After installation, the system should be calibrated to ensure accurate pressure readings.
Common Installation Mistakes
-
Incorrect Tap Placement: Incorrect tap placement can result in inaccurate pressure readings. Make sure to follow manufacturer recommendations for tap positioning.
-
Improper Seals: Ensure the seals around the pressure tap connections are tight to prevent leaks, which can affect the accuracy of the measurements.
Maintenance Considerations
Like any flow measurement system, regular maintenance is crucial for optimal performance. Key maintenance tasks include:
-
Checking for Obstructions: Make sure the pressure taps are free from debris or blockages.
-
Inspecting for Leaks: Ensure that all pressure lines are properly sealed to avoid leaks that could compromise the readings.
-
Routine Calibration: Regularly calibrate the system to maintain measurement accuracy.
Applications of the Corner-Tap Method
The corner-tap method is used across various industries:
-
Oil and Gas: It helps in accurately measuring the flow of crude oil and natural gas.
-
Water Treatment: Accurate flow measurement is critical in water treatment facilities.
-
Chemical Processing: The method is used to ensure precise chemical flows in reactors and pipelines.
Innovations in Pressure Measurement
The field of pressure measurement is constantly evolving, with new technologies emerging that improve the accuracy and efficiency of flow measurements. Innovations in digital sensors, wireless technology, and advanced computational models are beginning to complement traditional methods like the corner-tap, offering more advanced capabilities.
Challenges and Limitations of Corner-Tap Pressure Measurement
Despite its advantages, the corner-tap method isn’t without its challenges:
-
Complexity in Installation: The need for precise installation and calibration can be time-consuming.
-
Potential for Wear: Over time, wear and tear on the pressure taps may lead to reduced accuracy.
However, these issues can often be mitigated with regular maintenance and by ensuring proper installation.
Conclusion
In conclusion, the corner-tap pressure measurement method is a reliable and accurate technique for measuring pressure in flow systems that use orifice plates. ItWe are a manufacturer of automatic flow meters with many years of experience in the industry. We have strong independent research and development capabilities and are a leader in the flow meter industry. Our main products include electromagnetic flow meters, vortex flow meters, turbine flow meters, ultrasonic flow meters, Coriolis flow meters, various solenoid valves, level meters, control units and valves, etc. Welcome to purchase –Best Instrument
