Electromagnetic flow meters (often abbreviated as mag meters) are one of the most widely used flow measurement technologies in industries dealing with liquids. Their popularity stems from high accuracy, reliability, and the ability to measure conductive fluids without moving parts. Unlike mechanical meters, electromagnetic flow meters rely on Faraday’s law of electromagnetic induction to calculate flow velocity and volumetric flow rate.
In this long-form article, we will explore everything about measurable media characteristics, the role of electrode materials, and provide a comprehensive reference table that helps engineers, technicians, and procurement managers choose the right configuration for their process.
 Importance of Media Characteristics
Not every fluid is suitable for electromagnetic flow measurement. The key media characteristics that determine compatibility include:
-
Electrical conductivity (minimum requirement ~5 µS/cm, ideally >20 µS/cm)
-
Corrosiveness (acids, alkalis, solvents)
-
Abrasiveness (slurries, suspensions, sand-laden fluids)
-
Temperature (ranging from -40°C to +180°C depending on liner/electrode choice)
-
Pressure (high-pressure fluids require strong lining and electrode sealing)
Understanding the media characteristics ensures long service life and accurate measurement.

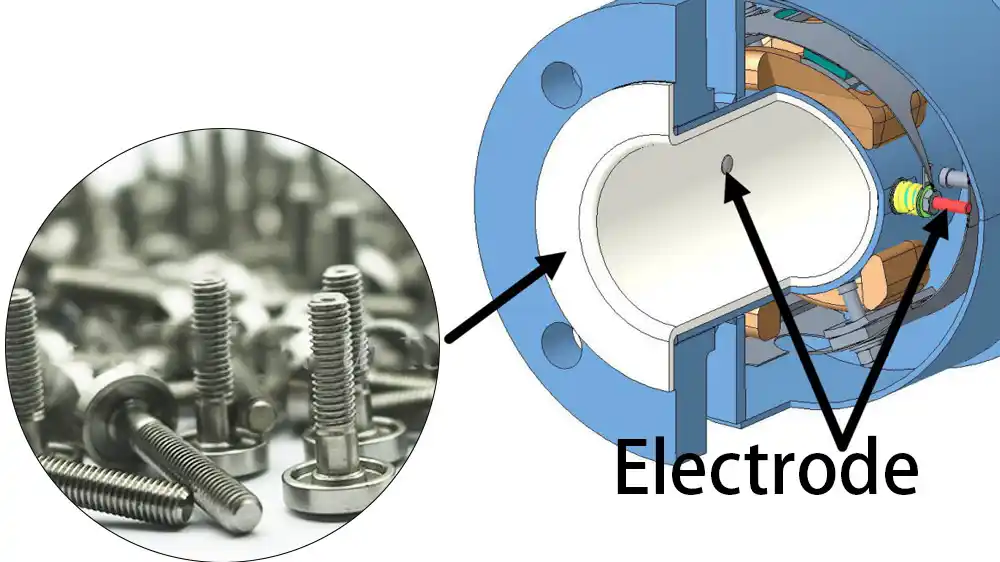

Role of Electrodes in Electromagnetic Flow Meters
Electrodes are the critical sensing elements that detect induced voltage. Their material must be chosen carefully to resist corrosion, erosion, or chemical attack from the process fluid.
Factors influencing electrode material selection:
-
Chemical composition of the medium
-
Operating temperature
-
Abrasion potential
-
Industry standards (water, food-grade, chemical)
 Common Electrode Materials
Below are the most frequently used electrode materials in electromagnetic flow meters:
-
Stainless Steel (SS316L) – Good for general water, wastewater, and mild chemicals.
-
Hastelloy C – Excellent corrosion resistance in acids, alkalis, and oxidizing media.
-
Tantalum – Resistant to strong acids like hydrochloric and sulfuric acid.
-
Platinum/Iridium – Used in highly aggressive or high-purity chemical processes.
-
Titanium – Resistant to seawater, chloride-containing fluids, and oxidizing environments.
-
Nickel Alloy – Good for caustic alkalis.
Electrode Coatings and Special Options
Sometimes, even the best metals may not withstand extreme conditions. To enhance performance, coatings and special electrode designs are used:
-
PTFE-lined electrodes for chemical resistance
-
Ceramic-tipped electrodes for abrasive slurries
-
Non-wetted electrodes (capacitive coupling) to prevent metal-fluid interaction
 Comprehensive Table of Media vs. Electrode Material
The table below summarizes media characteristics and the recommended electrode materials:
| Medium | Characteristics | Recommended Electrode Material |
|---|---|---|
| Drinking water | Neutral, non-corrosive | Stainless Steel (SS316L) |
| Wastewater, sewage | Slightly corrosive, solids present | Stainless Steel (SS316L), Hastelloy C |
| Sea water, brine | Chloride-rich, corrosive | Titanium, Hastelloy C |
| Hydrochloric acid (dilute) | Strongly corrosive | Tantalum, Platinum |
| Sulfuric acid (concentrated) | Highly aggressive | Tantalum, Platinum |
| Nitric acid | Oxidizing acid | Tantalum, Hastelloy C |
| Sodium hydroxide (caustic soda) | Strong alkaline | Nickel Alloy, Hastelloy C |
| Slurries (mineral, sand-water) | Abrasive | SS316L with ceramic protection |
| Food & beverages | Hygienic, mild | SS316L (food-grade), Platinum if aggressive |
| Pulp & paper stock | Fibrous, abrasive | Hastelloy C, SS316L |
| High-purity chemicals | Ultra-clean, no contamination allowed | Platinum, Tantalum |
