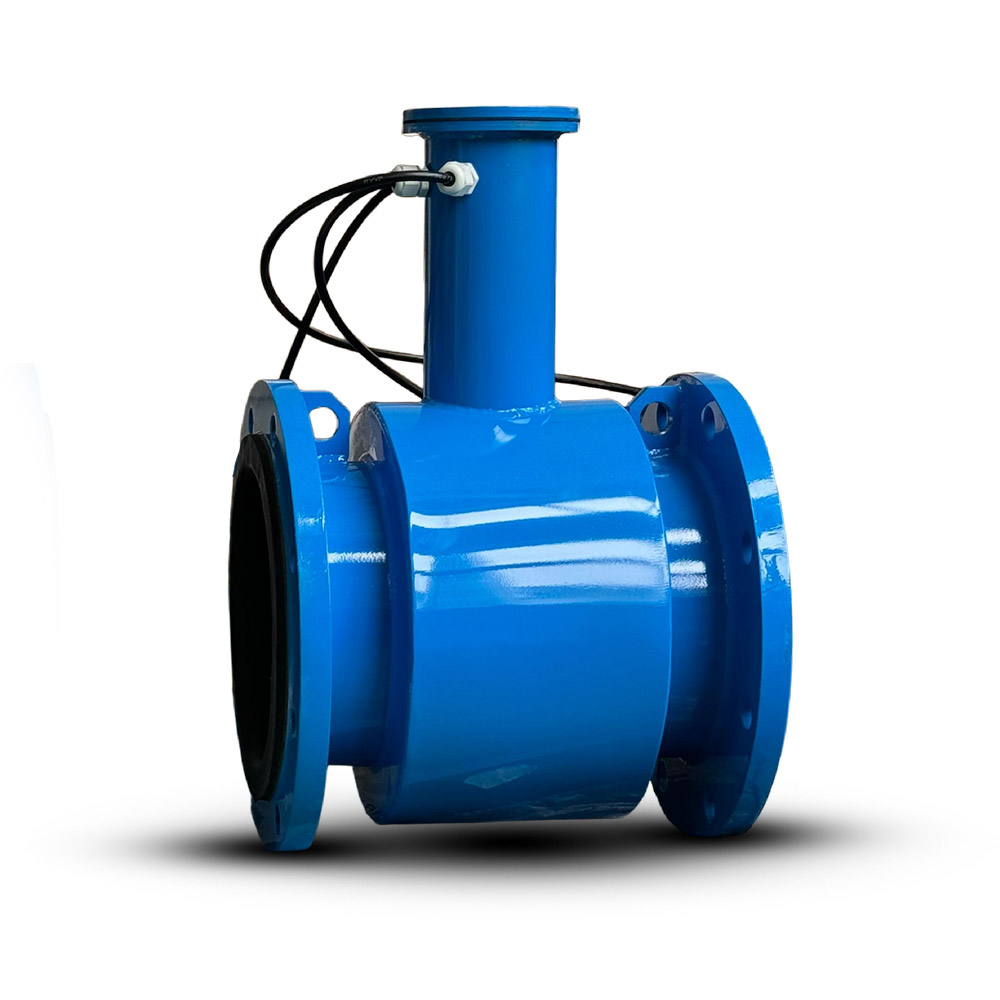

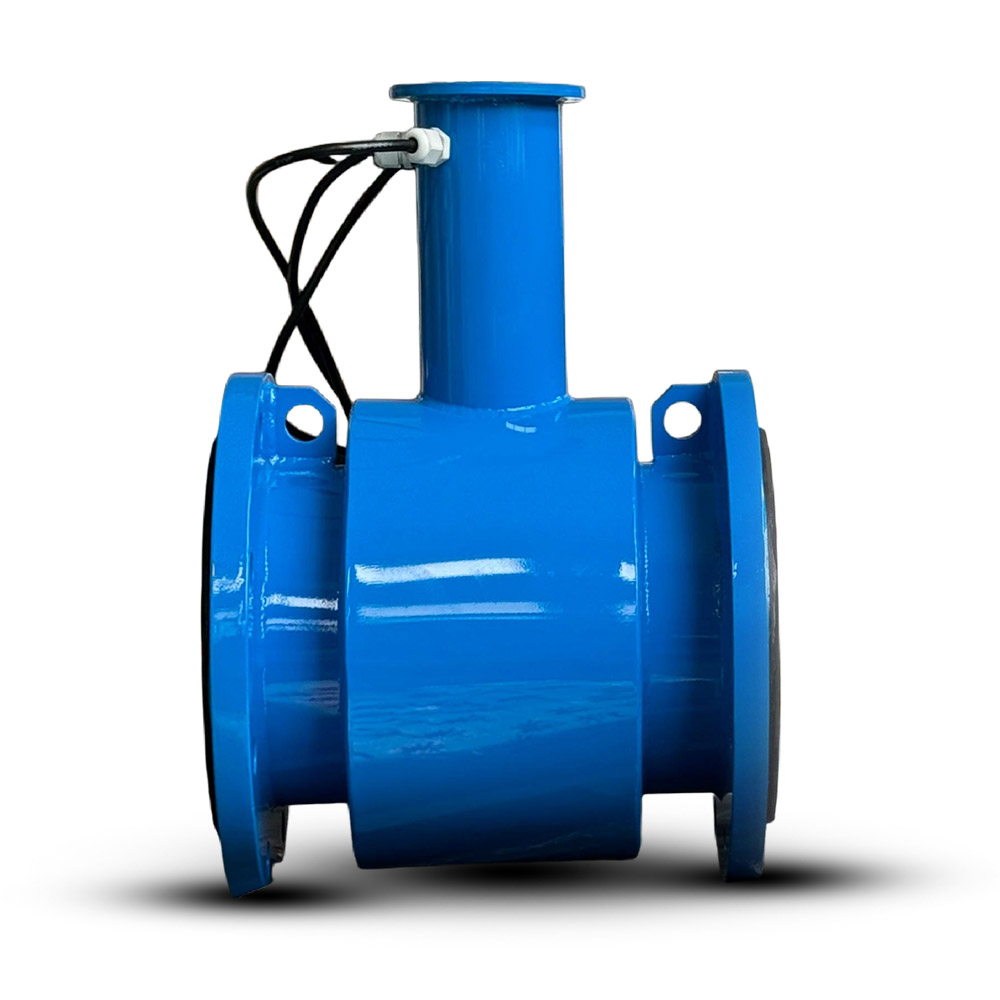

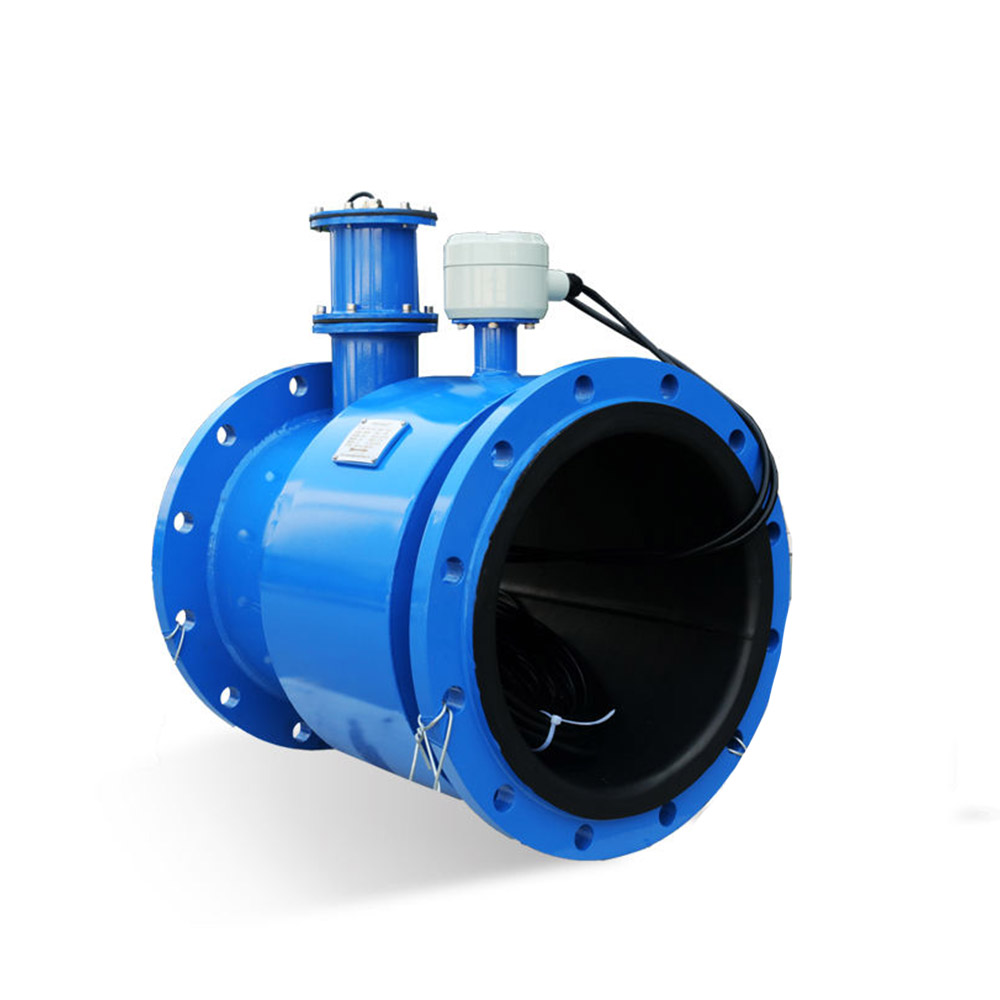

Non-full Pipe Type Electromagnetic Flowmeter
The non-full pipe electromagnetic flowmeter is specifically designed for measuring the flow and liquid level under non-full pipe conditions. With its unique electrode arrangement and algorithm, it can accurately measure flow and liquid level even when the pipe is not completely filled. The installation method is relatively flexible and suitable for various non-full pipe flow scenarios, such as drainage ditches and open channels. Its compact structure makes it easy to install and maintain, making it an ideal choice for precise monitoring of fluids in non-full pipe applications.
Feature:
Designed specifically for non-full pipe applications: It can accurately measure the flow in partially filled pipes and simultaneously monitor the liquid level.
Multifunctional monitoring: Provides flow and liquid level data, meeting the monitoring requirements under various operating conditions.
High installation flexibility: Suitable for various non-full pipe fluid scenarios, including drainage pipes, open channels, and pump suction lines.
Reliable measurement accuracy: Even with liquid level fluctuations or uneven pipe filling, it can provide stable measurement results.
Easy installation and maintenance: The compact design ensures simpler installation and lower daily maintenance requirements.
Technical Specifications
| Product Model | BST |
|---|---|
| DN Range | DN3~DN3000mm |
| Accuracy Class | 1.0% |
| Measured Media | Pure Conductive Liquids, Conductive Liquids with Impurities, Low-viscosity Clean Liquids, High-viscosity Liquids, Highly Corrosive Liquids, Solid-Liquid Slurry, Pulsating Flow, Volatile Liquids |
| Nominal Pressure | 0.6Mpa, 1.0Mpa |
| Liner Material | Perfluoroethylene propylene F46 |
| Electrode Material | 316L stainless steel, Hastelloy B, Hastelloy C, tantalum, titanium platinum, tungsten carbide, nickel |
| Housing Material | Carbon Steel |
| Connection Method | Flange Connection |
| Power Supply | DC 3.6V Battery, DC12-36V, AC 220V, AC 265V |
| Output Signal | Pulse, 4-20mA, RS485 |
| Communication Protocol | Standard MODBUS Protocol, Hart Protocol |
| IP Rating | IP65, IP67, IP68 |
Market Applications
Mining & Others
In the Mining and Metallurgy sectors, media primarily consist of heavy, abrasive mineral slurries, tailings, and corrosive leaching acids. These substances are characterized by high...
Water & Wastewater
The Water & Wastewater industry is a core field of water resource management, providing accurate metering support for water medium transportation and treatment.
