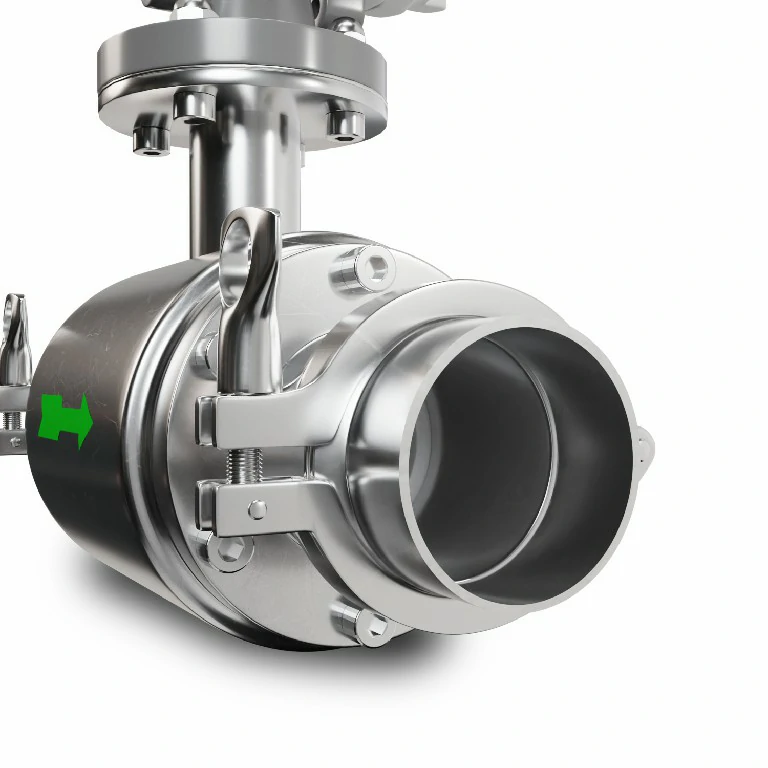

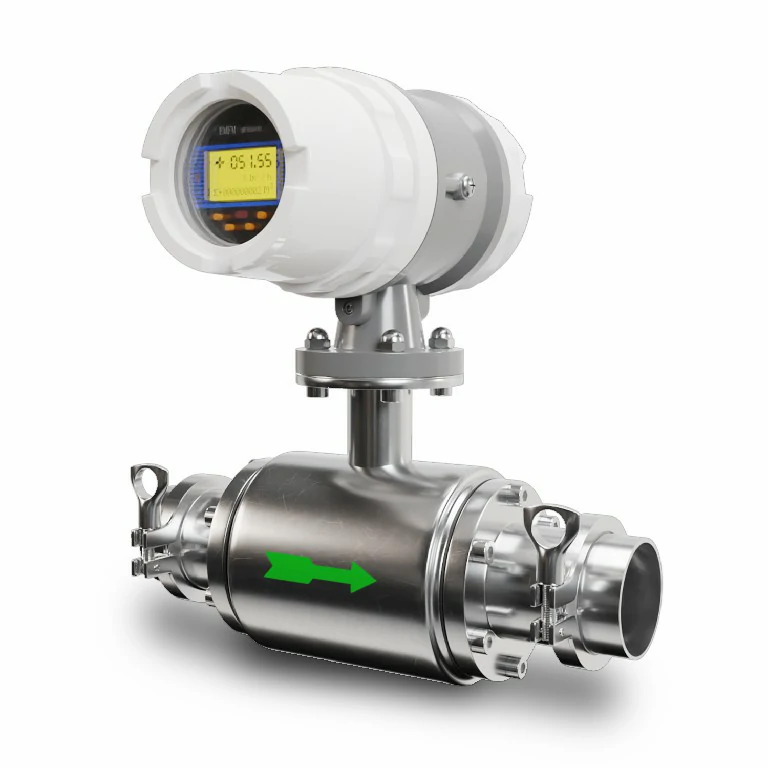

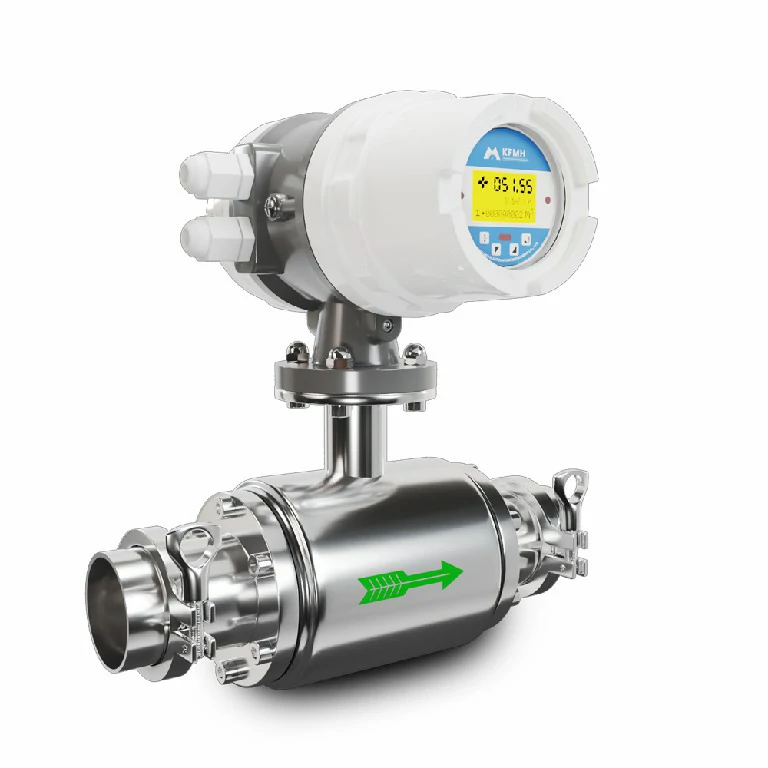

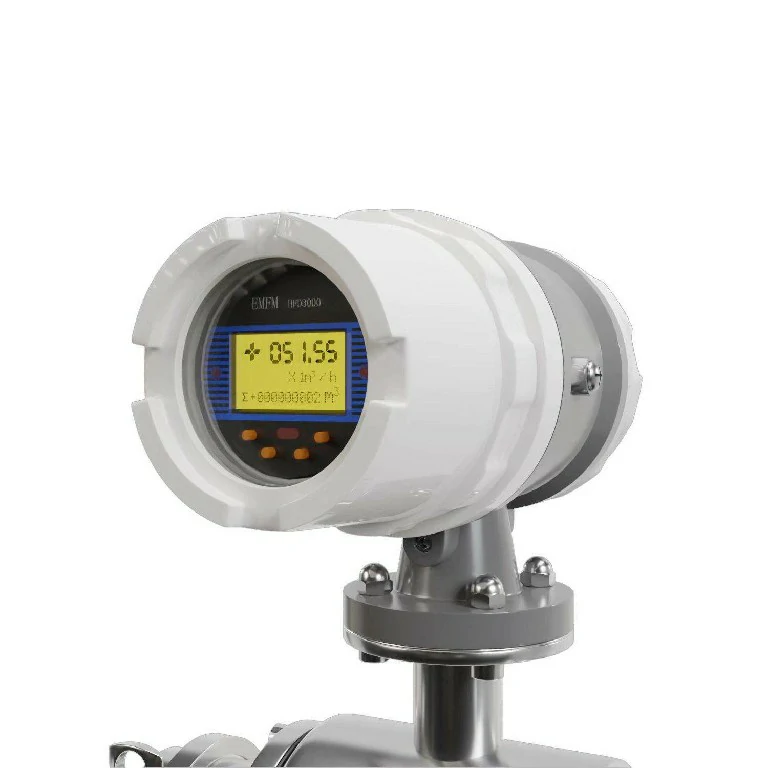

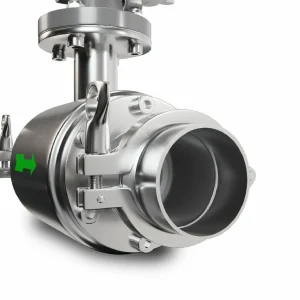

Sanitary Type Electromagnetic Flowmeter
Sanitary Type Electromagnetic Flowmeter: Meets hygiene standards for food and pharmaceutical industries, ensuring precise measurement and easy cleaning to guarantee product safety.
With high-standard hygienic design, it offers reliable measurement and easy maintenance.
The Sanitary Type Electromagnetic Flowmeter is specially designed for food, beverage, and pharmaceutical industries, meeting strict hygiene standards. Made of stainless steel or hygienic materials, its smooth interior facilitates cleaning and prevents contamination. Supports quick disassembly and cleaning, ensuring hygiene and measurement accuracy. Ideal for precise flow monitoring of conductive liquids, safeguarding product quality and safety.
Features:
- Hygienic Design: Meets industry hygiene standards; easy to disassemble and clean.

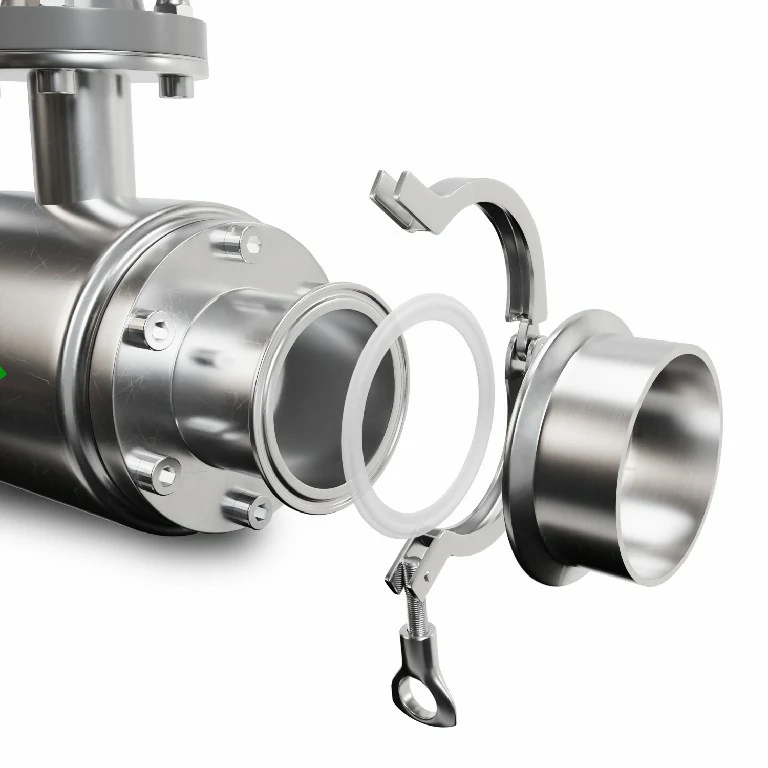

- Easy Cleaning: Smooth interior, no dead corners, quick removal and rinse.
- High Accuracy: Stable measurement ensures product quality and safety.
Technical Specifications
| Product Model | BST |
|---|---|
| DN Range | DN3~DN3000mm |
| Accuracy Class | 0.2%, 0.5%, 1.0% |
| Measured Media | Pure Conductive Liquids, Conductive Liquids with Impurities, Low-viscosity Clean Liquids, High-viscosity Liquids, Highly Corrosive Liquids, Cryogenic / High-temperature Liquids, Solid-Liquid Slurry, Pulsating Flow |
| Nominal Pressure | 0.6Mpa, 1.0Mpa, 1.6Mpa |
| Liner Material | Polytetrafluoroethylene PTFE |
| Electrode Material | 316L stainless steel, Hastelloy B, Hastelloy C, tantalum, titanium platinum, tungsten carbide, nickel |
| Housing Material | 316L Stainless Steel |
| Connection Method | Flange Connection, Threaded Connection, Insertion Type, Clamp-on Type |
| Power Supply | DC 3.6V Battery, DC12-36V, AC 220V, AC 265V |
| Output Signal | Pulse, 4-20mA, RS485 |
| Communication Protocol | Standard MODBUS Protocol, Hart Protocol |
| IP Rating | IP65, IP67, IP68 |
Market Applications
Food & Beverage
The Food & Beverage industry is a core livelihood industry, providing accurate metering guarantee for the processing and transportation of various food and beverage media.
Pharmaceutical
The Pharmaceutical industry is a core industry ensuring public health, providing accurate metering support for various media in the entire pharmaceutical production process.
