In the world of industrial flow measurement, accuracy, efficiency, and cost-effectiveness are critical. One of the biggest debates in this field revolves around the comparison between insertion electromagnetic flow meters and traditional flow meters. If you’re wondering which one wins in terms of performance, reliability, and return on investment, you’ve come to the right place.
In this article, we’ll take a deep dive into both technologies, highlighting their advantages, disadvantages, and ideal use cases. Whether you’re a plant manager, engineer, or procurement specialist, this guide will help you make a more informed decision.
What Are Insertion Electromagnetic Flow Meters?
Insertion electromagnetic flow meters (also called insertion magmeters) are a type of non-intrusive flow meter that uses Faraday’s Law of Electromagnetic Induction to measure the flow rate of conductive liquids. These meters are designed to be inserted into the pipe through a small opening, where their electrodes come into contact with the fluid.
Unlike full-bore magmeters, which span the entire diameter of the pipe, insertion meters only measure velocity at specific points and estimate the total flow from that data. This design makes them particularly appealing for larger pipes or applications where downtime must be minimized.

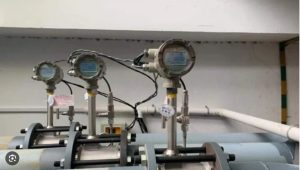

What Are Traditional Flow Meters?
The term traditional flow meters can refer to a variety of older or more established technologies, such as:
-
Mechanical flow meters (e.g., turbine, positive displacement)
-
Differential pressure (DP) flow meters
-
Ultrasonic clamp-on meters
-
Full-bore electromagnetic flow meters
These devices have been used for decades and are often chosen for their reliability and well-established performance in different environments. But they are not without their drawbacks, especially when it comes to installation complexity and maintenance costs.
Key Differences at a Glance
| Feature | Insertion Electromagnetic Meters | Traditional Flow Meters |
|---|---|---|
| Installation | Quick, non-intrusive | Often requires pipe cutting or downtime |
| Accuracy | Good (±1% typically) | Very good (±0.2% for high-end models) |
| Maintenance | Minimal | Moderate to high |
| Cost | Lower initial and installation cost | Higher overall cost |
| Pipe Size Compatibility | Best for large pipes | Suitable for all sizes |
| Fluid Type | Conductive fluids only | Wide variety depending on type |
How Do Insertion Electromagnetic Flow Meters Work?

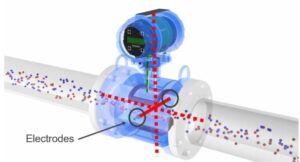

These meters work by generating a magnetic field inside the pipe and measuring the voltage induced as conductive fluid passes through this field. The voltage is directly proportional to the flow velocity, and when the cross-sectional area is known, the volumetric flow rate can be calculated.
The electrodes of the meter are inserted into the flow stream, but the installation is not disruptive. The meter body is typically mounted externally, and the probe is inserted via a hot-tap or pre-welded fitting.
Advantages of Insertion Electromagnetic Flow Meters
1. Non-Intrusive Installation
With hot-tap capability, insertion meters can be installed without shutting down the process. This is ideal for critical operations or pipelines that must stay operational 24/7.
2. Cost-Effective for Large Pipes
Traditional full-bore meters get very expensive as pipe diameter increases. In contrast, insertion meters remain relatively affordable, making them a great fit for pipes over 4 inches in diameter.
3. Low Maintenance
Since there are no moving parts, there’s minimal wear and tear. This reduces the need for frequent maintenance and extends the meter’s operational life.
4. Scalability
They are often modular and come with flexible features like remote transmitters, digital displays, and integration with SCADA systems.
Limitations of Insertion Electromagnetic Flow Meters
1. Accuracy Limitations
While insertion meters are accurate enough for most applications, they generally can’t match the precision of full-bore meters or high-end traditional meters.
2. Fluid Requirements
They can only measure conductive fluids. Non-conductive fluids like oils, gases, and certain chemicals are outside their range.
3. Velocity Profile Dependency
Because they measure velocity at one or a few points, their accuracy depends on a fully developed flow profile. Disturbed flows can introduce error if proper installation conditions are not met.
Traditional Flow Meters: Pros and Cons
1. Wider Application Range
Traditional meters like ultrasonic or mechanical meters can handle non-conductive fluids, slurries, gases, and even steam.
2. High Accuracy
Some traditional meters—especially positive displacement and full-bore magmeters—offer extremely high accuracy, often necessary for billing or custody transfer applications.
3. Proven Track Record
They’ve been used for decades, so standards, calibration protocols, and industry experience are all well-established.
But…
-
Installation often requires cutting pipes, which means downtime and labor costs.
-
Moving parts in mechanical meters are prone to wear and fouling.
-
Maintenance can be frequent and costly in some cases.
Use Cases: When to Use Which?
✅ Use Insertion Electromagnetic Flow Meters When:
-
You’re measuring conductive liquids like water, wastewater, or slurries.
-
You need a quick installation with minimal downtime.
-
Your system includes large pipes, especially over 4–6 inches in diameter.
-
You’re looking for a cost-effective solution that delivers reliable data without high precision requirements.
✅ Use Traditional Flow Meters When:
-
You need to measure non-conductive fluids, gases, or steam.
-
You require high-accuracy readings for legal compliance or billing.
-
The system allows for downtime during installation.
-
You have a wide range of pipe sizes and fluid types.
Future Trends in Flow Meter Technology
With the rise of Industry 4.0 and smart factory integration, flow meters are becoming more digital and connected. Insertion magmeters are evolving with features like:
-
Wireless communication
-
Battery-powered models
-
Built-in diagnostics
-
IoT integration for real-time monitoring
Traditional meters are also being upgraded, but their physical limitations (moving parts, installation complexity) may hold them back in some future applications.
Frequently Asked Questions (FAQs)
Are insertion electromagnetic flow meters suitable for high-viscosity fluids?
Not ideal. They work best with low to moderate viscosity conductive liquids.
Can I use an insertion meter in a small pipe?
Technically yes, but it’s not recommended. Accuracy drops in smaller diameters (typically under 2 inches), and full-bore meters are better suited in such cases.
How long do insertion flow meters last?
With proper maintenance and correct installation, they can last 10–15 years or more, especially since they have no moving parts.
What are typical industries that use insertion magmeters?
-
Water and wastewater treatment
-
Power generation
-
Food and beverage
-
Chemical processing
-
Mining and slurry handling
Conclusion: Which One Wins?
So, who wins the battle of flow meters—Insertion Electromagnetic or Traditional?
The answer depends on your application. If you need cost-effective, easy-to-install, low-maintenance flow measurement for large-diameter pipes carrying conductive fluids, then insertion electromagnetic flow meters are the clear winner.
However, if your application demands extreme accuracy, measurement of non-conductive fluids, or must adhere to regulatory standards, traditional meters still have the upper hand.
The true winner is the one that best fits your operational needs, budget, and long-term goals. By understanding the unique strengths and limitations of each type, you’ll be empowered to make the smartest investment in your flow measurement infrastructure.
